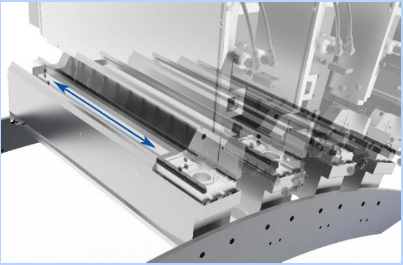

For cleaning, the cleaning boxes with basic cleaning and ultrasonic cleaning unit move under the firmly mounted print heads (semi-transparent visible). Source – Gallus Ferd. Rüesch AG

Ink consumption is one of the variable costs in digital printing. It varies from job to job and often sets the economic limits for the process. The Gallus One’s newly developed, contact-free cleaning system reduces ink consumption, but does the reduction in ink consumption significantly reduce the total cost of ownership?

Dr Burkhard Wolf is considered a dynamic innovator in digital printing, where he applies his digital and inkjet expertise as head of Digital Technology. Together with his team, he is working on the development of new platforms for digital printing systems in label printing. He gained his experience at Heidelberg as well as during his university degree in mechanical engineering at TU Darmstadt.

inkjet label press
Dr Burkhard Wolf, Head of Digital Technology at Gallus Ferd. Rüesch AG (Source: Gallus Ferd. Rüesch AG).

Relevance of ink costs in digital printing

It is well known that ink costs in digital printing have a much greater impact on the total cost of ownership than in analog printing processes. They influence the profitability of every print job and sometimes contribute to reducing the margin of a job to such an extent that it can be produced more cheaply in analog than digital, especially for longer runs. It is therefore no wonder that converters focus on ink as a cost factor in digital printing and analyse very closely how much it affects the print run. Precise cost recording is an important prerequisite for keeping the total cost of ownership in digital printing under control.

Where does ink consumption occur?

Ink is not only required to achieve ink coverage in printing, it is also used to clean the nozzles when the print heads are flushed with ink. It is worth taking a closer look at the ink consumption that occurs there.

During the printing process, ink particles are deposited on the underside of the print bars and therefore also on the edge of the nozzles. Scattered light causes the ink particles to cure which are then difficult to remove. As a result, even the smallest deposits can cause a nozzle to start ejecting droplets at an angle, which impairs the print quality and makes it necessary to clean the print bar.

The scattered light which hits the print bars, is emitted by the pinning modules, which are located directly next to the print bars. Their task is to partly cure the printing ink using UV energy before the next droplet of ink is added. This prevents the inks from running into each other, which means that the ink dots are reproduced sharply and there is no color shift due to bleeding. UV pinning is therefore an indispensable part of the machine technology for coated papers and plastic films in high-speed digital printing machines.

inkjet label press

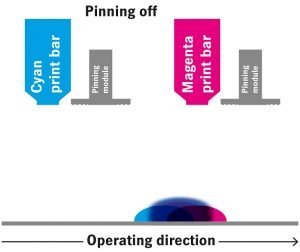

Without pinning, the colors bleed as shown in the picture on the top. The UV rays of the pinning module in the picture on the bottom fix the ink droplets and prevent bleeding (source: Gallus Ferd. Rüesch AG).
inkjet label press

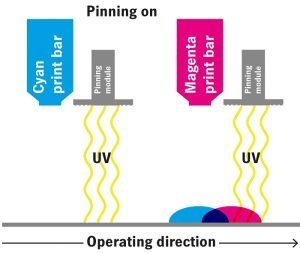

Without pinning, the colors bleed as shown in the picture on the top. The UV rays of the pinning module in the picture on the bottom fix the ink droplets and prevent bleeding (source: Gallus Ferd. Rüesch AG).

Cleaning by purging

The nozzles are often cleaned after contamination by spraying or rinsing with cleaning agents and then vacuuming. However, if more stubborn deposits occur, this is not enough to clean the nozzles. Then the print heads must be flushed from the inside, i.e. ink is pumped through the nozzles to clean them. The ink consumption during such a cleaning process should not be underestimated as up to several hundred millilitres of ink are required per cleaning.

Another reason why print heads need to be flushed is simply due to the different tendency of the ink shades to contaminate them. This sometimes depends on the dyeing components used in the inks. The pigment in violet in particular is difficult to clean, but white ink with its titanium dioxide content also makes cleaning the print bars more difficult. This is because the pigments in these inks tend to adhere to the silicon surface of the print bars and cannot be removed by rinsing. Often, they can only be removed by physical cleaning by hand, which carries the risk of damaging the printheads.

Innovative cleaning system

Dr Wolf describes the unsatisfactory situation of the operator having to manually clean such a sensitive machine part by touching it, as the starting point for the development of a new, gentle and efficient cleaning system for the Gallus One. The system was developed in cooperation with Heidelberg in an extensive series of tests, in which the cleaning effect of rinsing supplemented by ultrasonic cleaning was investigated.

In ultrasonic cleaning, the cleaning liquid is set into vibration. “When used in this way, ultrasound has an incredible effect on cleaning the inkjet heads,” says Wolf, summarizing the test results. Once the endurance tests have been completed, this patented cleaning method will now be used in the production machines.

“When used in this way, ultrasound has an incredible effect on cleaning the inkjet heads,” – Burkhard Wolf, head of Digital Technology, Business Unit Label

Cleaning process

In the build concept of the Gallus One, the print bars are fixed, which is a fundamental and patented innovation of the entire printing unit of this digital press. At the start of a cleaning cycle, the arch-shaped print table automatically moves down together with the substrate. The cleaning unit then slides out, consisting of a drawer arch on which the cleaning boxes for each printbar are located.

During basic cleaning, which takes place when the Gallus One is started up and shut down and at regular intervals in-between, cleaning fluid is rinsed onto the print bars in the cleaning boxes and then extracted.

inkjet label press
The Gallus One has two intensity levels to clean the print bars. Source – Gallus Ferd. Rüesch AG)

In extended cleaning with ultrasound, a generator stimulates the cleaning fluid at a frequency optimized in a long series of tests, causing it to vibrate and thus gently and thoroughly clean the nozzle plate of ink components, including the polymerized ink residues on the nozzles. Cleaning is carried out exclusively from the outside of the print heads, completely eliminating any ink consumption by flushing the nozzles. This pioneering, patented cleaning process also means that no ink needs to be disposed of after cleaning.

inkjet label press
In addition to the rinsing unit (flood bath), the cleaning box has an ultrasonic unit that removes stubborn deposits. Source – Gallus Ferd. Rüesch AG

Cleaning intervals and pinning

Since the degree of contamination of the print bars depends on the scattered light emitted by the pinning modules, the cleaning intervals are based on the power with which they are operated. The performance itself is a retrievable measurement variable that is used correlatively to control the cleaning intervals and is therefore not based, as is so often the case, on assumed cycles with a corresponding safety buffer.

The Gallus One, on the other hand, has an intelligent forced cleaning system that, in addition to the basic parameters, also takes into account the remaining running meters of an attached roll and offers a number of advantages that significantly increase the efficiency and productivity of the printing process. For example, the cleaning intervals are controlled so that they occur as rarely as possible, entirely within the intuition of the operator, who combines upcoming cleaning with job or role changes. The example of cleaning intervals also shows the high level of standardization of the processes and the reproducible processes based on them, which lead to high machine availability and low downtimes.

inkjet digital press

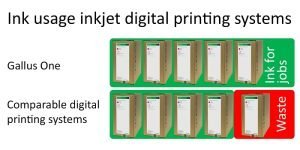

While the Gallus One uses almost 100% of the ink for ink coverage in print jobs, comparable inkjet digital printing systems lose around 20% of the ink during cleaning which then has to be disposed of. (Source: Gallus Ferd. Rüesch AG)

Ink consumption in practice

The digital printing systems on the market offer the option of specifying the ink requirement for a job to be printed. This provides transparency about ink requirements and ink costs during the calculation. However, it is often not clear that such calculations only refer to the calculation of ink costs for the job in question.

Moreover, this approach is not sufficient for actually determining the total operating costs of a digital printing press, as the ink consumption for flushing the nozzles is added to the ink coverage. This is not insignificant. Evaluations show that around 20% of ink for flushing the nozzles must be added to the calculated ink consumption for ink coverage.

Uwe Alexander, Product manager Digital at Gallus Ferd Rüesch summarizes the advantages of the newly developed cleaning system, “Thanks to its innovative cleaning concept, the Gallus One consumes up to 20% less ink than comparable inkjet printing systems on the market, as there is no need to flush the heads with ink.”

This also has an impact on the total cost of ownership of a digital printing system. Assuming a monthly ink consumption of 200 liters for a digital printing system, this results in a linear annual ink requirement of 2,400 liters. At a price per liter of Euro 60 on the market, this represents costs of Euro 144,000 per year for a UV printing ink system. If these costs can be reduced by 20%, the annual ink consumption costs are only Euro 115,200. This corresponds to a saving of Euro 28,800 a year in operating costs. Calculated over five years, this amounts to Euro 144,000 and reaches a level that becomes an investment-relevant criterion when purchasing a digital printing system. This approach transparently shows that cleaning costs significantly impact the total cost of ownership of an inkjet label press.

Link to the Gallus One cleaning video on youtube:

https://www.youtube.com/watch?v=Wjp65jXNV0k
